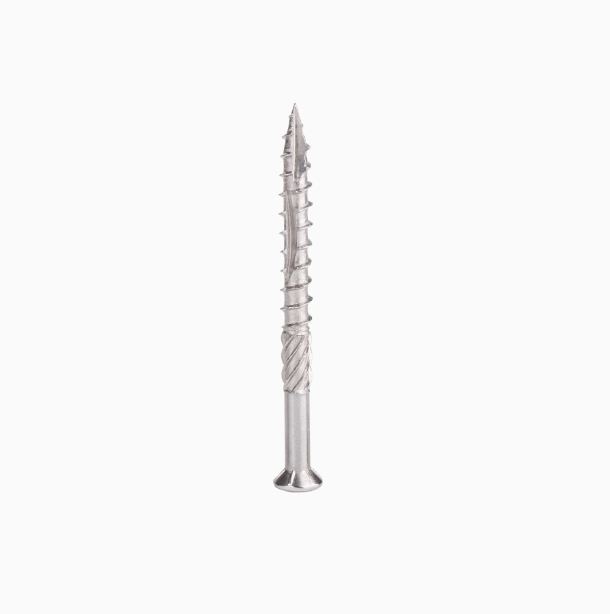

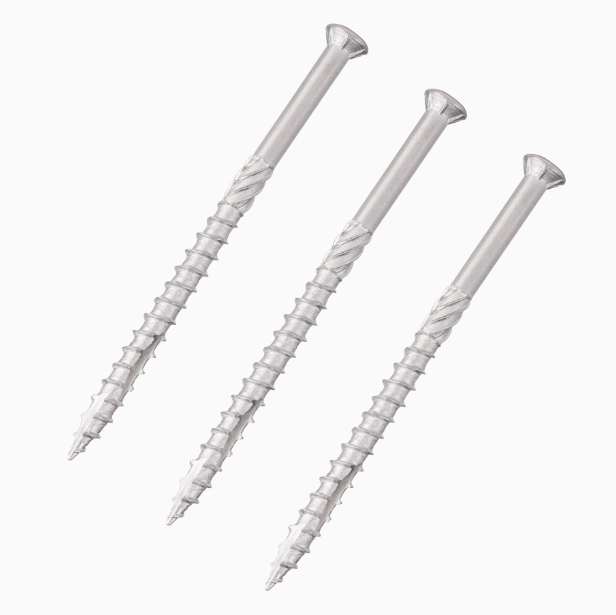

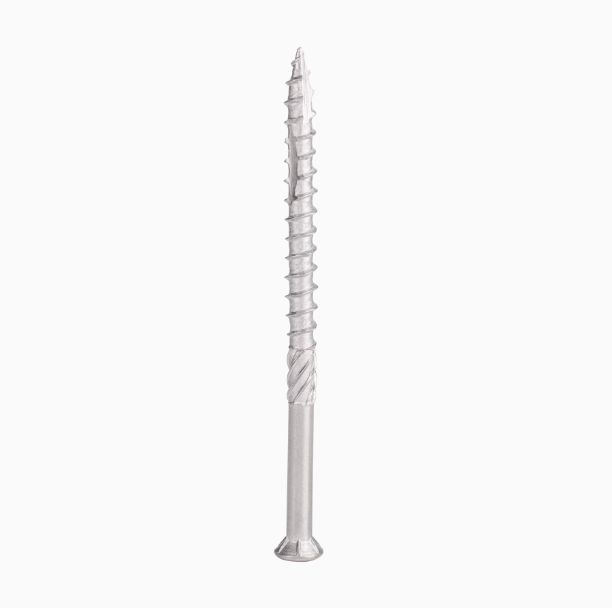

What Is a Trim Screw?
In international hardware terminology, a trim screw refers to a fastener characterized by a head diameter that is proportionally smaller than the thread size. Where a standard pan head or truss head screw of the same gauge would present a prominent profile, the trim screw offers a refined, low-visibility alternative. The defining feature is the 6mm head diameter—compact enough to blend into surrounding surfaces while still providing adequate bearing surface for secure fastening.
This configuration is particularly valued in:
Visible fastening applications where exposed hardware must complement the surrounding aesthetic
Tight-clearance assemblies where standard head sizes interfere with adjacent components
Finished surfaces where a smaller, cleaner fastener profile is specified
Material: Stainless Steel for Durability and Appearance
All trim screws are manufactured from stainless steel, selected for its combination of mechanical strength, corrosion resistance, and aesthetic longevity.
| Grade | Characteristics | Typical Applications |
|---|---|---|
| A2 Stainless (304) | Excellent corrosion resistance; suitable for most indoor and sheltered outdoor applications; maintains bright, clean appearance with minimal maintenance | Kitchen cabinetry, furniture, automotive interior trim, electronics enclosures |
| A4 Stainless (316) | Superior corrosion resistance with molybdenum addition; withstands coastal atmospheres, marine environments, and chemical exposure; ideal for exterior and high-humidity installations | Marine trim, exterior architectural features, outdoor furniture, pool and spa areas |
The natural passivated finish provides a consistent, matte-to-bright appearance that does not rust, stain, or discolor surrounding materials—a critical requirement for decorative applications.
Head Design: 6mm Low-Profile Geometry
The 6mm head diameter represents a significant reduction from standard screw heads. For comparison:
A standard #8 pan head screw typically measures 7.5–8.5 mm in diameter
A standard #10 pan head screw typically measures 9.0–10.0 mm
Our trim screw maintains a consistent 6 mm head across multiple thread sizes
This reduced profile is achieved through precision heading and secondary machining that optimizes the relationship between drive recess depth, head height, and bearing surface area. The result is a fastener that:
Sits nearly flush with the surface when installed
Reduces visual impact on finished assemblies
Maintains sufficient bearing area to prevent pull-through in soft materials
Accommodates standard drive tools without specialized bits
Drive Options
Despite the compact head size, our trim screws accommodate standard drive types commonly used in furniture, cabinetry, and trim applications:
| Drive Type | Advantages |
|---|---|
| Phillips | Widely recognized; compatible with standard drivers; suitable for general assembly |
| Torx (Star) | Superior torque transmission; reduced cam-out; preferred for high-volume production and power tool installation |
| Square (Robertson) | Excellent driver engagement; minimal cam-out; commonly specified in cabinet and furniture manufacturing |
| Combination | Phillips/square or Phillips/slotted combination for field flexibility |
Thread Forms
| Thread Type | Application |
|---|---|
| Coarse Thread | Wood, soft composites, particle board, MDF—provides strong pull-out resistance in fibrous materials |
| Fine Thread | Hardwoods, metal, high-density materials—offers greater thread engagement in dense substrates |
| Self-Tapping Point | Sharp point with cutting threads; eliminates need for pre-drilling in many applications |
Length Range
Trim screws are available in lengths suitable for common trim and decorative fastening applications:
Short lengths (6–16 mm): Thin panels, cabinet hardware, decorative trim attachment
Medium lengths (16–25 mm): Standard cabinet assembly, furniture joinery, trim installation
Extended lengths (25–40 mm): Thicker materials, multi-layer assemblies, structural trim applications
| Parameter | A2 Stainless (304) | A4 Stainless (316) |
|---|---|---|
| Tensile Strength | 500 – 700 MPa | 500 – 700 MPa |
| Hardness | 80 – 95 HRB | 80 – 95 HRB |
| Corrosion Resistance | 500+ hours salt spray | 1,000+ hours salt spray |
| Operating Temperature | -40°C to +300°C | -40°C to +400°C |
| Magnetic | Non-magnetic | Non-magnetic |
| Finish | Natural passivated | Natural passivated |
| Thread Size | Head Diameter | Head Height | Drive Recess |
|---|---|---|---|
| #6 (3.5 mm) | 6.0 mm | 1.8 – 2.2 mm | #1 Phillips / T10 Torx / #1 Square |
| #8 (4.2 mm) | 6.0 mm | 2.0 – 2.5 mm | #2 Phillips / T15 Torx / #2 Square |
| #10 (4.8 mm) | 6.0 mm | 2.2 – 2.8 mm | #2 Phillips / T20 Torx / #2 Square |
| M3 | 6.0 mm | 1.8 – 2.2 mm | #1 Phillips / T10 Torx |
| M4 | 6.0 mm | 2.0 – 2.5 mm | #2 Phillips / T15 Torx |
Lengths available from 6 mm to 40 mm in 2 mm increments.
Furniture & Cabinetry
The 6mm trim screw is extensively used in high-end furniture and kitchen cabinet manufacturing where visible fasteners must complement the finished piece. Applications include hinge mounting, drawer slide attachment, decorative hardware installation, and panel joinery. The small head profile allows the screw to blend into wood grain, painted finishes, or laminate surfaces without the prominent appearance of standard hardware.
Automotive Interior Trim
In automotive applications, these screws secure interior trim panels, door cards, console components, and decorative accents. The compact head size is essential for installations where clearance between trim pieces is minimal, and the stainless steel construction resists corrosion from interior humidity and incidental moisture exposure.
Marine & Outdoor Trim
A4 (316) stainless steel trim screws are specified for marine environments, securing rub rails, hatch hardware, cockpit trim, and exterior decorative elements. The combination of small head profile and superior corrosion resistance ensures that fasteners remain visually unobtrusive while withstanding saltwater exposure and UV degradation.
Architectural Millwork
Commercial and residential millwork projects utilize trim screws for attaching molding, trim pieces, and decorative elements. The 6mm head allows for countersinking or surface mounting with minimal visibility, preserving the clean lines of architectural details.
Electronics & Enclosures
For consumer electronics, control panels, and instrument housings, trim screws provide secure fastening without dominating the product’s aesthetic. The low-profile head complements sleek industrial design while providing reliable service access.
Each production batch undergoes standard quality verification:
Thread conformance: Go/no-go gauging ensures consistent thread geometry
Dimensional accuracy: Head diameter, height, and overall length verified
Drive recess: Depth and geometry confirmed for consistent bit engagement
Surface condition: Passivation verified; no burrs, sharp edges, or surface defects
Material certification: Chemical composition and mechanical properties documented per batch
Packaging
Bulk cartons suitable for production line feeding
Anti-corrosion packaging for extended storage
Custom kitting available for assembly-specific quantities
| Parameter | Detail |
|---|---|
| Minimum Order Quantity | 20,000 pieces (per size/configuration) |
| Retail Availability | None; industrial and OEM supply only |
| Custom Options | Head style, drive type, thread form, length, material grade |
| Lead Time | 4–8 weeks depending on complexity |
| Documentation | Material Test Reports, dimensional inspection, lot traceability |
