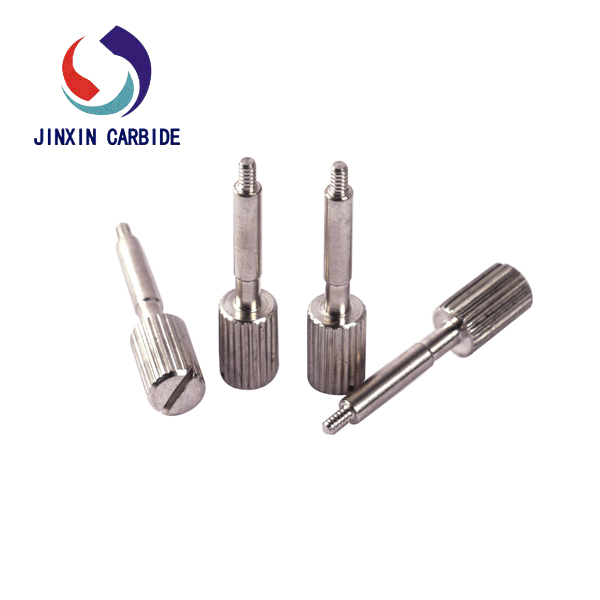

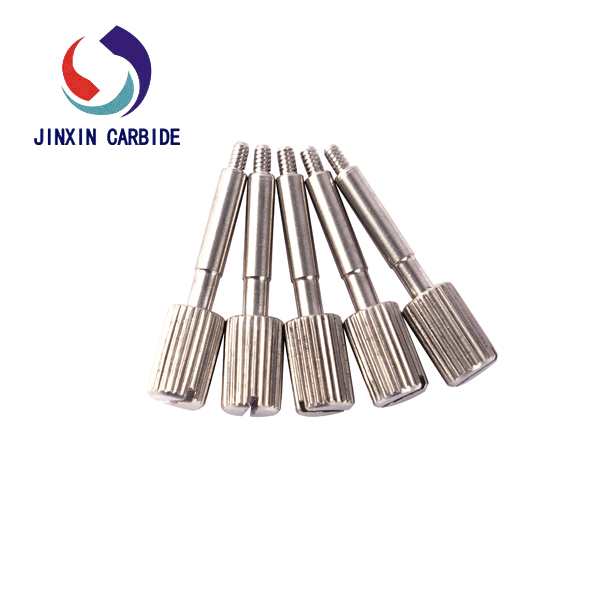

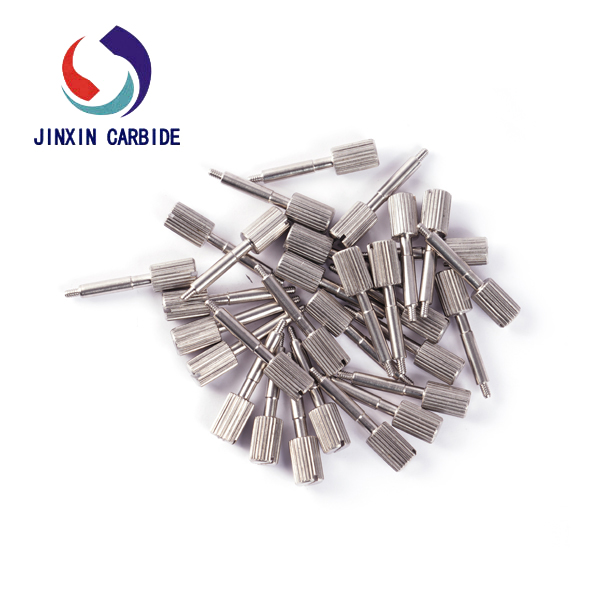

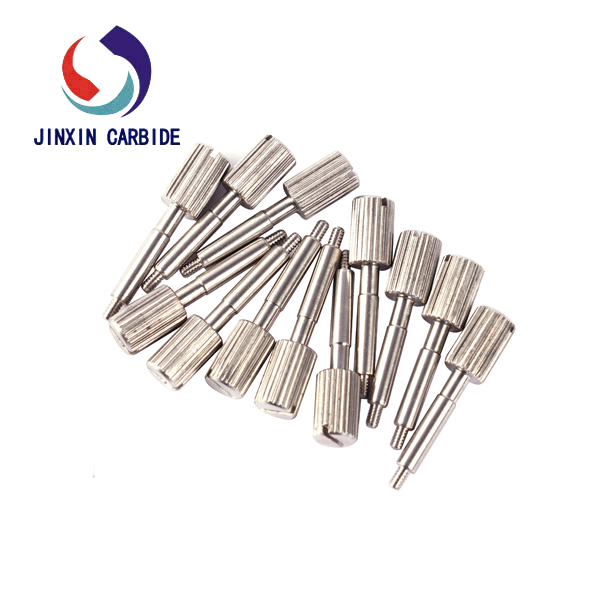

Product Overview: Knurled Head Shoulder Screw
A knurled head shoulder screw serves as a specialized fastener combining three distinct functional zones within a single component. The knurled head provides a tactile, slip-resistant gripping surface for hand-tightening and adjustment without tools. The precision shoulder acts as a bearing surface or pivot point, allowing rotation or precise spacing between assembled components. The threaded section secures the fastener into a tapped hole or nut, creating a permanent yet adjustable assembly.
This design is particularly valuable in applications where frequent manual adjustment, precise alignment, or controlled rotation is required—eliminating the need for wrenches or drivers while maintaining the accuracy of a precision-machined component.
Key Functional Zones
| Zone | Function |
|---|---|
| Knurled Head | Provides ergonomic grip for hand-tightening; diamond-cut or straight knurl pattern enhances tactile feedback |
| Shoulder | Precision-ground cylindrical section serves as bearing surface, pivot point, or precision spacer |
| Threaded Section | Standard or custom threads for secure engagement with mating component |
Knurled Head Design: Ergonomics & Grip
The knurled head is the primary interface for manual operation. We offer multiple knurl patterns optimized for different grip requirements and aesthetic preferences:
Diamond Knurl: Cross-hatched pattern providing maximum grip in all directions; ideal for applications requiring frequent adjustment or operation with gloved hands
Straight Knurl: Parallel ridges offering directional grip; suitable for applications where torque direction is consistent
Knurled with Undercut: Includes relief groove below head for clean shoulder transition; preferred for applications where the head seats flush against a counterbore
Head diameters can be customized to accommodate specific torque requirements—larger diameters provide greater mechanical advantage for higher tightening torque; smaller diameters suit space-constrained assemblies.
Precision Shoulder: Accuracy & Function
The shoulder section distinguishes this fastener from standard thumb screws. Manufactured to tight tolerances, the shoulder serves multiple critical functions:
Bearing Surface: Provides a smooth, concentric surface for rotating components such as levers, linkages, or adjustment mechanisms
Precision Spacing: Maintains consistent gap between assembled components; shoulder length determines fixed spacing regardless of thread engagement depth
Alignment: Ensures concentricity between mating components when shoulder fits into precision-bored holes
Load Distribution: Transfers shear loads across the full shoulder diameter rather than through threads
Shoulder tolerances are maintained to ±0.02 mm for standard precision applications, with tighter tolerances available for critical assemblies.
Threaded Section: Secure Attachment
The threaded section provides the mechanical attachment to the mating component. Options include:
Metric Threads: M2 through M12, coarse or fine pitch per ISO standards
Inch Threads: UNC, UNF, or custom per ASME standards
Thread Length: Partial threading allows full shoulder engagement before threads engage
Thread Class: 6g (external) for standard fit; 6h for precision applications
Material: High-Grade Stainless Steel
All components are machined from premium stainless steel grades selected for corrosion resistance, strength, and aesthetic finish:
| Grade | Properties | Applications |
|---|---|---|
| 303 Stainless | Free-machining, excellent surface finish, good corrosion resistance | General precision applications, high-volume machining |
| 304 Stainless | Excellent corrosion resistance, good strength, weldable | Medical devices, food equipment, general industrial |
| 316 Stainless | Superior corrosion resistance, marine-grade | Chemical exposure, marine environments, implantable devices (special processing) |
| 17-4 PH Stainless | Precipitation-hardened, high strength, excellent wear resistance | High-load applications, aerospace, surgical instruments |
Surface Finishes
Passivated: Standard finish for stainless steel; removes free iron, enhances corrosion resistance, maintains natural metal appearance
Electropolished: Bright, smooth finish; improves corrosion resistance and cleanability; ideal for medical and food applications
Bead Blasted: Uniform matte finish; reduces glare; provides professional appearance
As Machined: Natural finish with visible tool marks; suitable for non-cosmetic applications
Custom Machining Capabilities
We specialize in fully custom configurations to meet specific design requirements:
| Custom Parameter | Options |
|---|---|
| Head Diameter | 6 mm – 30 mm |
| Head Height | 3 mm – 12 mm |
| Knurl Pattern | Diamond, straight, custom pitch and depth |
| Shoulder Diameter | 3 mm – 20 mm |
| Shoulder Length | 2 mm – 50 mm |
| Shoulder Tolerance | ±0.01 mm to ±0.05 mm |
| Thread Size | M2 – M12, #2 – 1/2″ |
| Thread Length | Full or partial |
| Overall Length | 10 mm – 100 mm |
| Material | 303, 304, 316, 17-4 PH stainless; other alloys upon request |
| Surface Finish | Passivated, electropolished, bead blasted, custom |
Standard Tolerance Capabilities
| Feature | Standard Tolerance | Precision Tolerance |
|---|---|---|
| Shoulder Diameter | ±0.02 mm | ±0.005 mm |
| Shoulder Length | ±0.05 mm | ±0.02 mm |
| Thread Diameter | 6g class | 4h or 6h class |
| Head Diameter | ±0.10 mm | ±0.05 mm |
| Overall Length | ±0.20 mm | ±0.10 mm |
| Concentricity (Shoulder to Thread) | 0.10 mm TIR | 0.05 mm TIR |
| Knurl Pitch | ±0.10 mm | ±0.05 mm |
Mechanical Properties (Stainless Steel)
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HRB/HRC) |
|---|---|---|---|
| 303 Stainless | 550–700 | 240–300 | 80–95 HRB |
| 304 Stainless | 515–700 | 205–345 | 70–90 HRB |
| 316 Stainless | 515–690 | 205–345 | 70–90 HRB |
| 17-4 PH (H900) | 1,100–1,300 | 1,000–1,170 | 40–45 HRC |
Manufacturing Process: Precision CNC Machining
Each knurled head shoulder screw is produced through a multi-step precision machining process:
Material Selection: Certified stainless steel bar stock with full material traceability
CNC Turning: Precision Swiss-type or CNC lathe machining achieves tight tolerances on shoulder diameter, thread diameter, and concentricity
Knurling: Formed or cut knurl patterns applied with controlled depth to ensure consistent grip without compromising head strength
Thread Rolling or Cutting: External threads formed via rolling for improved fatigue strength or cut for custom thread configurations
Secondary Operations: Cross-drilling, slotting, or additional features as specified
Surface Finishing: Passivation, electropolishing, or other finishes applied per requirements
100% Inspection: Critical dimensions verified with optical comparator, thread gauges, and micrometer measurements
Quality Assurance
Material Certification: EN 10204 Type 3.1 or 2.2 per customer requirement
Dimensional Reporting: First article inspection reports with full dimensional data
Thread Verification: Go/no-go thread gauge inspection
Surface Finish Verification: Ra measurement for bearing surfaces
Lot Traceability: Complete manufacturing history maintained for each production batch
Packaging Options
Individual poly bags with traceability labels for prototype and low-volume orders
Bulk cartons with anti-corrosion packaging for production quantities
Custom kitting with mating components per assembly requirements
Foam-lined cases for high-value precision components
Application Areas
| Industry | Typical Application | Critical Requirements |
|---|---|---|
| Medical Devices | Instrument adjustment mechanisms, clamp handles | Biocompatible materials, cleanability, precise positioning |
| Optical Equipment | Focus adjustments, mounting screws | Smooth operation, precision shoulder alignment, non-reflective finishes |
| Laboratory Instruments | Sample holders, stage adjustments | Corrosion resistance, hand-operated convenience |
| Industrial Machinery | Guide adjustments, quick-release mechanisms | Durability, repeatable positioning, high cycle life |
| Aerospace | Access panel fasteners, adjustment screws | High strength, lightweight design, corrosion resistance |
| Consumer Products | Camera mounts, bicycle components | Aesthetic finish, ergonomic grip |
