Addressing the Need for Extended Reach Fasteners
Conventional automotive fasteners are designed around standardized lengths that accommodate typical stack heights. However, modern vehicle architectures—particularly in chassis reinforcement, suspension mounting, powertrain bracketing, and commercial vehicle assemblies—frequently require fasteners that extend beyond standard catalogs. Our custom extended automotive screws fill this gap, providing engineered solutions for applications requiring precise thread engagement at depths up to 370 mm.

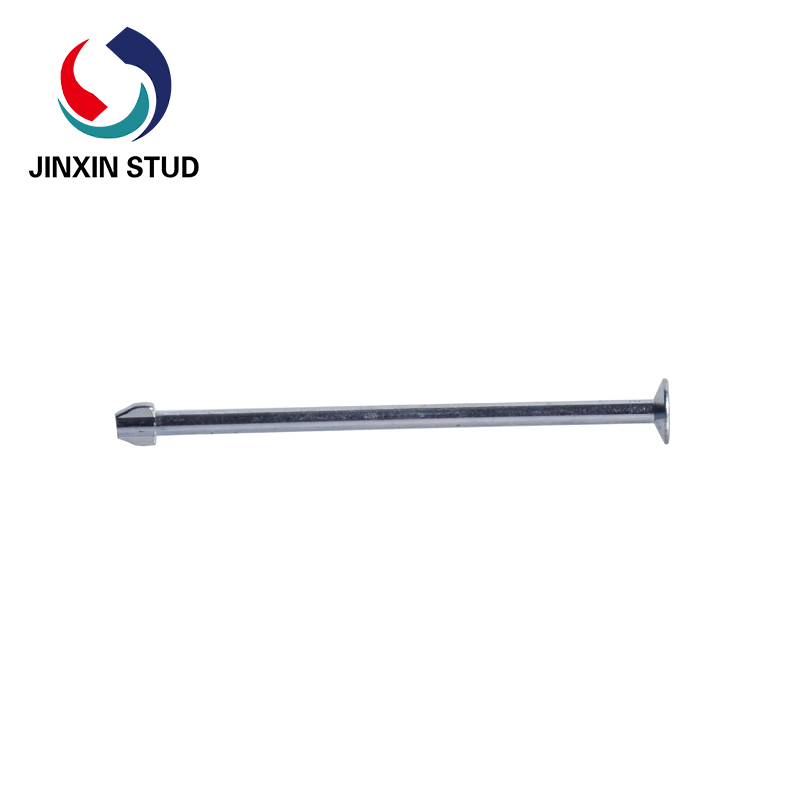

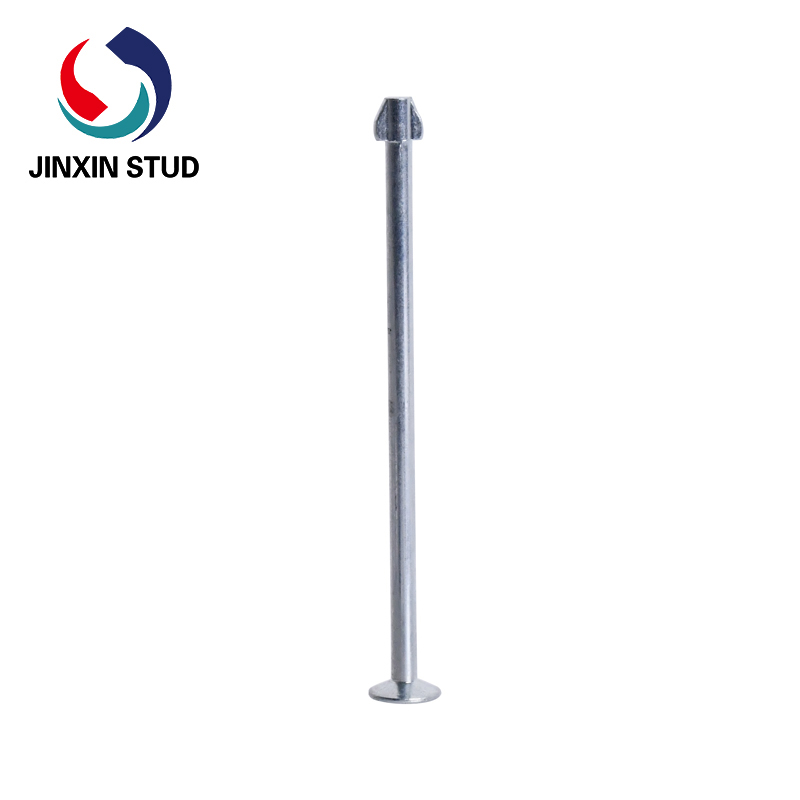

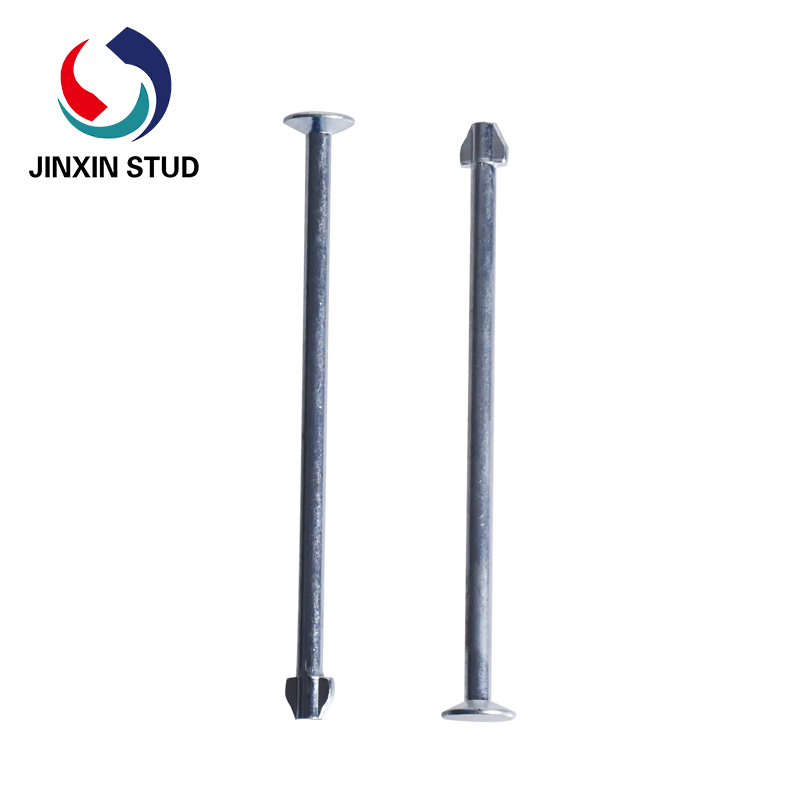

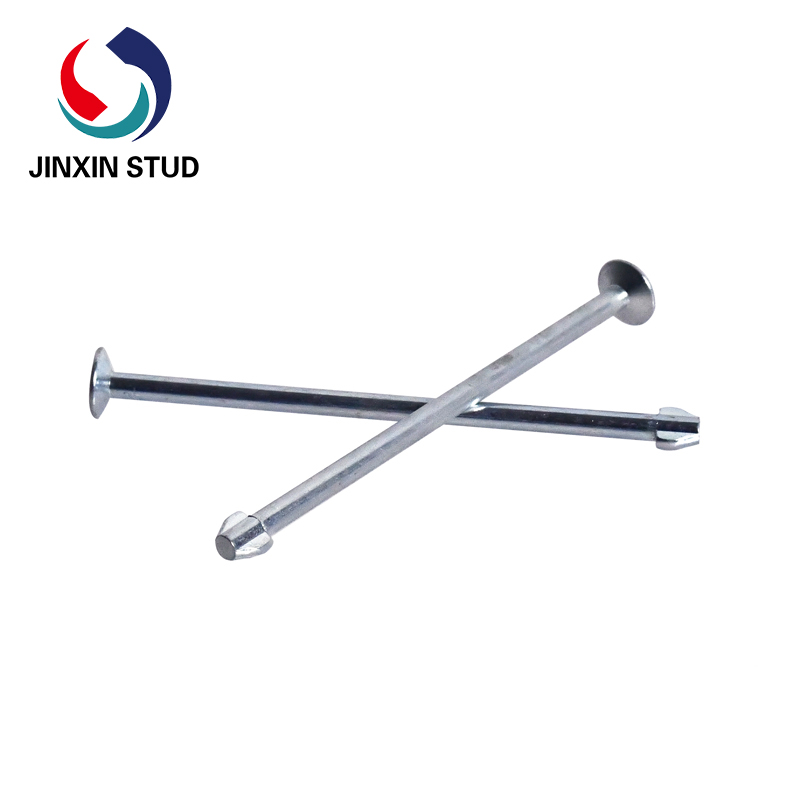

Fish-Tail End: Engineered for Guided Insertion
The fish-tail design distinguishes this fastener from standard threaded products. Named for its tapered, bifurcated tip geometry, this feature serves multiple mechanical functions:
| Feature | Function |
|---|---|
| Tapered Lead-In | Facilitates initial insertion through misaligned or multi-layer assemblies |
| Self-Centering Tip | Guides the screw toward the receiving threaded hole or nut |
| Reduced Cross-Thread Risk | Minimizes thread damage during blind or angled installations |
| Assembly Efficiency | Reduces installation time in production environments |
This design is particularly valuable in applications where the fastener must pass through multiple components—such as suspension arms, mounting brackets, or structural reinforcements—before engaging a threaded receiver that may not be directly visible to the installer.
Customizable Length Range: 170–370 mm
Length flexibility is the defining characteristic of this product. We offer precise customization within the 170 mm to 370 mm range, allowing engineers to specify the exact length required for their stack-up configuration.
| Length Segment | Typical Applications |
|---|---|
| 170–220 mm | Engine mounting brackets, transmission support members |
| 220–280 mm | Heavy-duty suspension links, chassis crossmembers |
| 280–320 mm | Commercial vehicle frame attachments, specialized equipment mounts |
| 320–370 mm | Deep-reach structural assemblies, prototype and custom vehicle builds |
Each custom length is manufactured to tight tolerances, with overall length tolerance maintained at ±0.5 mm to ensure consistent engagement across production runs.
Specialized Coating Systems
Standard off-the-shelf coatings often fail to meet the specific demands of custom automotive applications. We offer a range of specialized coating systems that can be matched to environmental exposure, assembly requirements, and mating material considerations:
| Coating Type | Key Properties | Typical Selection Criteria |
|---|---|---|
| Zinc-Nickel Alloy | 720–1,000 hrs salt spray, thermal stability up to 150°C | High corrosion protection, under-hood applications |
| Geomet / Dacromet | 500–1,000 hrs salt spray, no hydrogen embrittlement, consistent friction coefficient | High-strength applications, structural fasteners |
| Black Oxide with Topcoat | Moderate corrosion protection, matte appearance, minimal dimensional change | Interior applications, aesthetic requirements |
| Xylan / PTFE-Based | Low friction, chemical resistance, consistent torque-tension relationship | Applications requiring precise clamp load control |
| Zinc-Aluminum Flake (Thin Film) | 300–600 hrs salt spray, RoHS compliant, good thermal stability | General corrosion protection with environmental compliance |
Partial Specifications Available for Sample Validation
We maintain select specifications in sample-ready inventory, enabling engineering teams to validate fit, function, and performance before committing to full production quantities. Sample availability includes:
Select length increments within the 170–370 mm range
Multiple thread diameters (M8–M16) and pitches
Representative fish-tail geometries
Standard coating options
Contact our technical sales team to inquire about currently available sample specifications.
| Parameter | Specification | Notes |
|---|---|---|
| Length Range | 170 mm – 370 mm | Customizable in 5 mm increments |
| Length Tolerance | ±0.5 mm | Standard production tolerance |
| Thread Sizes | M8 – M20 | Coarse or fine pitch available |
| Thread Class | 6g (external) | Precision rolled threads |
| Material Grades | 8.8, 10.9, 12.9 (carbon steel); 304, 316, 17-4 PH (stainless) | Custom grades available |
| Head Styles | Hex flange, socket cap, custom configurations | Per application requirements |
| Fish-Tail Length | 15–25 mm | Tapered lead-in section |
| Fish-Tail Geometry | Tapered bifurcated tip | Self-centering, cross-thread reduction |
| Surface Treatments | Zinc-Nickel, Geomet, Dacromet, Black Oxide, Xylan, Zinc-Aluminum | Custom combinations available |
| Corrosion Resistance | 300–1,000 hrs salt spray | Dependent on coating selection |
| Hardness (Core) | 25–45 HRC | Dependent on material grade |
| Tensile Strength | 800–1220 MPa | Dependent on material grade |
Geometry and Function
The fish-tail tip is characterized by:
Tapered Entry Angle: 15–20 degrees, providing progressive lead-in
Tip Relief: Reduced diameter at the extreme end to accommodate initial misalignment
Bifurcated Profile: Split-tip configuration that centers the fastener during approach
Lead Threads: First 2–3 threads progressively relieved for smooth start
Installation Benefits
In production environments, the fish-tail design delivers measurable improvements:
Reduces installation time by 30–50% in blind-hole applications
Eliminates cross-thread rework in difficult-access assemblies
Enables reliable fastener engagement without visual confirmation of the receiving thread
Accommodates stack-up variations and component alignment tolerances
Beyond length, thread size, and coating, we offer additional customization parameters:
| Custom Feature | Options | Application Relevance |
|---|---|---|
| Head Configuration | Hex flange, socket cap, torx drive, custom logos | Assembly tooling compatibility, branding |
| Thread Form | Standard metric, UNF/UNC, custom pitch | Mating component requirements |
| Fish-Tail Geometry | Standard tapered, extended lead-in, special tip profiles | Blind hole depth, alignment conditions |
| Underhead Configuration | Flat, spherical, serrated flange | Bearing surface requirements |
| Marking | Grade markings, lot codes, custom identifiers | Traceability, quality management |
Packaging Options
OEM Bulk Packaging: 300 – 5,00 units per carton, bar-coded labels with lot traceability
Service Kit Packaging: Individual sets with mating components, installation instructions
Anti-Corrosion Packaging: VCI treated bags and cartons for extended storage
Why Choose Our Automotive Ball Studs?
Automotive-Grade Quality: IATF 16949 certified manufacturing, PPAP documentation available
High Stability Design: Precision tolerances ensure consistent articulation and load performance
Proven Durability: Validated through fatigue, vibration, and environmental testing
Material & Treatment Flexibility: Multiple grades and surface finishes to match application requirements
Full Traceability: Complete documentation from raw material to finished component
